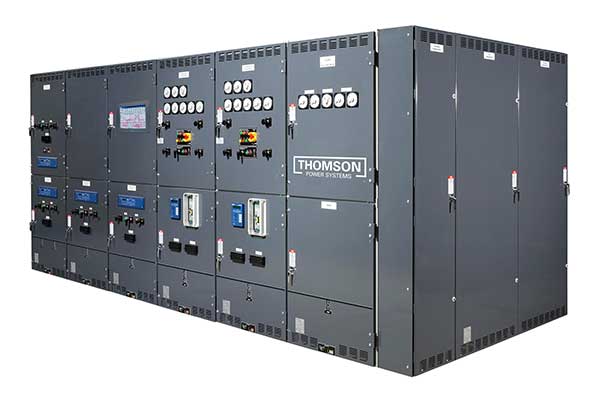

ANSI C37.20.2 MV Paralleling Switchgear
The System 2000 product family provides a fully integrated control and power switching solution for diverse Power Generation System applications. Thomson Power Systems' industry-leading System 2000 Digital Paralleling Systems offer superior functionality, ensuring seamless integration, enhanced efficiency, and reliable performance. This advanced technology sets a benchmark in robustness, surpassing other paralleling systems in the industry.
The System 2000 Switchgear supports a wide range of industry-standard power switching equipment, including main power circuit breakers, disconnect switches, distribution feeder breakers, and transfer switches. These components can be incorporated into various switchboard configurations, such as single-ended or double-ended substations with tie-breakers, optimizing flexibility and power distribution. Additionally, the System 2000 Switchgear features integrated control and protection equipment, including generator and utility protective relays, metering systems, engine/generator controls, governor and excitation systems, and remote monitoring capabilities.
Designed for multiple applications, the System 2000 product family supports Distributed Generation (DG), Cogeneration/Peak Shaving, Emergency Standby (ES), and Prime Power (PP) systems. System accommodates single or multiple generator configurations, ensuring adaptability to a range of operational requirements. With advanced features and seamless system integration, the System 2000 Switchgear delivers optimized power generation efficiency and reliability
Download the S2000 Brochure
Download our S2000 product brochure today to explore all the features and benefits!
ANSI C37.20.2 MV Paralleling Switchgear Offer:
Power Switching Units:
- VCBs– Draw-out Vacuum Circuit Breakers (ANSI rated).
- Fast-acting motor mechanisms – Ensures quick operation for efficient switching.
- Fast-acting shunt trip/close – Enables rapid opening and closing of breakers.
- Anti-pumping operation – Prevents unintended repetitive breaker operations during complex control sequences.
- Breaker auxiliary contacts – Allows additional monitoring and control options.
Superior Serviceability:
- Modular Design – Simplifies maintenance, upgrades, and expansion.
- Front-Accessible Components – Enables easy inspection and replacement.
- Clear Labeling & Indicators – Enhances fault diagnosis and troubleshooting.
- Designed for Minimal Downtime – Ensures efficient servicing and operation continuity.
- Automatic Shutters - Covers primary circuit elements when the removable element is in the disconnected, test, or removed position.
- Grounded Metal Barriers - Ensures safety by enclosing all live parts within grounded metal compartments.
Product Data:
- Current Ratings – Up to 3000A @ 15KV
- Load Bus Ampacity – Up to 3000 @ 15KV
- Short Circuit Rating – Up to 49KAIC
- Application – NEMA 1, 2 & 3 (Indoor/Outdoor)
- Control Options – Customized digital/analog control
- Protection – Integrated protection relays
- Pole Configurations – 3 Pole
- Frequency – 50/60Hz rated
- System Type – 3 Phase, 3 Wire
Seismic Certification:
- IBC 2012 Compliance – Certified per Section 13 seismic requirements.
- Occupancy Category IV – Designed for essential facilities requiring high reliability.
- ASCE7-05 Region 3 – Meets seismic standards, with a minimum SS = 200%.
- OSHPD Certified – Approved for healthcare and critical infrastructure applications.
Warranty
- 1 year limited warranty included
Controller Features:
The PGC 4000 is a powerful and intelligent Power Generation Controller, enabling automatic paralleling of single or multiple generators in Distributed Generation, Automatic Standby, and Prime Power applications.
Alternative controllers available in the market can also be integrated into the system's design
* Note : Apart from our standard design, we offer extensive customization based on customer requirements. Our System 2000 products can be tailored to accommodate specific power ratings, protection schemes, interface options, and operational preferences
