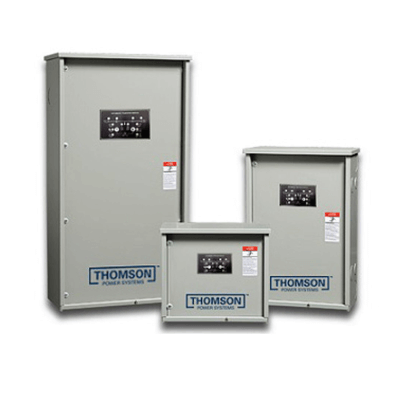

TS920 Automatic Transfer Switches
An Automatic Transfer Switch (ATS) is an essential device for ensuring uninterrupted power for commercial & residential application.
The TS920 Automatic Transfer Switch offers reliable, seamless power transition for residential and commercial applications. Equipped with a robust power contactor switching unit and advanced TSC 9 microprocessor-based controller, the TS920 automatically detects utility power failures and swiftly connects the system to a backup generator, and once utility power is restored, it automatically reverts the load back to the primary supply. The TS920 ensures a smooth and safe switch between power sources.
The TS920 Automatic Transfer Switches employ a power contactor switching unit with a TSC 9 microprocessor- based controller to automatically start a generator and transfer system load to the generator supply in the event of a utility supply failure. System load is automatically re-transferred back to the utility supply following restoration of the utility power source. All load transfer sequences are “Open Transition” (i.e., “break-before-make”) utilizing an in-phase transfer detection control sequence. Service entrance option available.
Browse TS920 Products
Discover the exceptional quality and performance of our TS920 products today!
View the TS920 Brochure
Download our TS920 product brochure today to explore all the features and benefits!
TS 920 Automatic Transfer Switches Offer:
Power Contactor Switching Units
- 100% Continuous Current Ratings for use with all load types
- Suitable for copper and aluminum power cable connections
- High Short Circuit Withstand Ratings when used with upstream molded case circuit breakers
Reliable Solenoid Operated Transfer Mechanism
- Fast Operation allows In-Phase Power Transfer
- Electrical and Mechanical Interlocked mechanism prevents simultaneous closure of utility and Generator Sources
Superior Serviceability
- Plug-in Control Devices allow superior field serviceability
- Enclosed Power Contacts for safe operation and maintenance
Control Features
- Advanced TSC 9 Series Transfer Controller with features specifically designed for Commercial ATS applications. User programmable timers, simple LED interface
- Outputs for Automatic Load Shed & Remote Alarming
- kW Load Shed Control (Optional) reduces costs by sizing your standby power system for prioritized loads
- Universal Generator Interface kit option allows TS 920 to be applied to multiple types of generator sets utilizing 240V remote starting control systems
Product Data
- 100A, 200A, 400A Models
- Service Entrance Rated Models (Optional)
- 120/208/220/240VAC 3 Phase, 4 wire c/w Neutral
- 3 Pole, 50/60hz
- Rust Resistant Aluminum Enclosures
- NEMA 3R Door for Outdoor Applications (Optional)
- Withstand Short Circuit Current Ratings up to 50kA
- Sturdy enclosure and door construction
Quality Assurance
- ISO 9001 Registered Manufacturing Facilities
- Complies with:
- NEMA® & UL 50
- UL 508
- IEEE C62.41, C37.90.1
- FCC CFR 47 Part 15, Class B
- IEC EN 61000 Series Electromagnetic Capability
Safety Standards
- UL 1008 Listed Automatic Transfer Switches for use in legally required Emergency Systems
Warranty
- 2 year limited warranty included
* Check out our brochure for additional product information, controller features and optional add-ons.
