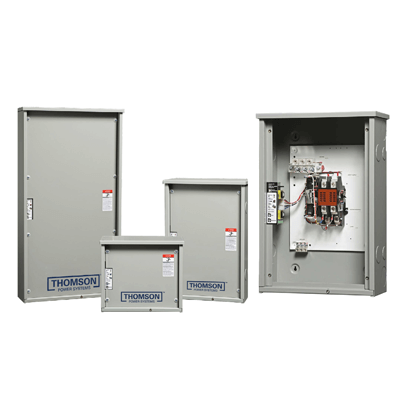

TS910 Automatic Transfer Switches
An Automatic Transfer Switch (ATS) is an essential device for ensuring uninterrupted power for commercial & residential application.
The TS910 Automatic Transfer Switch provides reliable power continuity for residential and commercial applications by seamlessly transitioning to backup power during outages. Using a power contactor switching unit and a TSC 9 microprocessor-based controller, it automatically starts the generator and transfers the system load in the event of utility failure, with a quick re-transfer to utility power when restored. Featuring "Open Transition" load transfer with in-phase detection, the TS910 ensures safe, efficient operation.
The TS910 Automatic Transfer Switches employ a power contactor switching unit with a TSC 9 microprocessor-based controller to automatically start a generator and transfer system load to the generator supply in the event of a utility supply failure. System load is automatically re-transferred back to the utility supply following restoration of the utility power source. All load transfer sequences are “Open Transition” (i.e.“break-before-make”) utilizing an in-phase transfer detection control sequence. Service entrance option available.
Browse TS910 Products
Discover the exceptional quality and performance of our TS910 products today!
View the TS910 Brochure
Download our TS910 product brochure today to explore all the features and benefits!
TS 910 Automatic Transfer Switches Offer:
Power Contactor Switching Units
- 100% Continuous Current Ratings for use with all load types
- Suitable for copper and aluminum power cable connections
- High Short Circuit Withstand Ratings when used with upstream molded case circuit breakers
Reliable Solenoid Operated Transfer Mechanism
- Fast Operation allows In-Phase Power Transfer
- Electrical and Mechanical Interlocked mechanism prevents simultaneous closure of utility and Generator Sources
Superior Serviceability
- Plug-in Control Devices allow superior field serviceability
- Enclosed Power Contacts for safe operation and maintenance
Control Features
- Advanced TSC 9 Series Transfer Controller with feature specifically designed for Residential and Light Commercial ATS applications. User programmable timers, simple LED interface
- Outputs for Automatic Load Shed & Remote Alarming
- kW Load Shed Control (Optional) reduces costs by sizing your standby power system for prioritized loads
- Wireless Remote Alarm Messaging Module (Optional)
- Universal Generator Interface kit option allows TS 910 to be applied to multiple types of generator sets utilizing 240V remote starting control systems
Product Data
- 100A, 200A, 400A Models
- Service Entrance rated Models are available
- 120/240V Single Phase, 3 wire c/w Neutral
- 120/208V 3 Phase, 4 wire c/w Neutral
- 2 Pole/3 Pole, 50/60hz
- Rust Resistant Aluminum Enclosures
- NEMA® 3R Door for Outdoor Applications (Optional)
- Withstand Short Circuit Current Ratings up to 50kA
Quality Assurance
- ISO 9001 Registered Manufacturing Facilities
- Complies with:
- NEMA® & UL 50
- UL 508
- IEEE C62.41, C37.90.1
- FCC CFR 47 Part 15, (Subpart B) Class B
- EN 61000 Series Electromagnetic Capability
Safety Standards
- UL 1008 Listed Automatic Transfer Switches for use in optional standby system
Warranty
- 2 year limited warranty included
* Check out our brochure for additional product information, controller features and optional add-ons.
