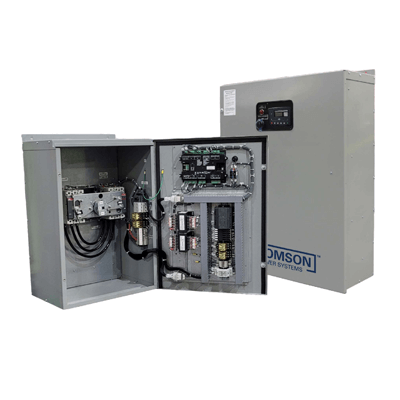

TS870 Automatic Transfer Switches
An Automatic Transfer Switch (ATS) is an essential device for ensuring uninterrupted power for critical environments, such as data centers, healthcare, wastewater treatment plants, commercial buildings, manufacturing facilities & refineries.
The TS870 Automatic Transfer Switch is a versatile solution designed to ensure uninterrupted power fo critical operations whilst adapting to changing system demands. Its open-transition system prevents out-of-phase transfers, while optional configurations like Closed Transition Transfer, Bypass Isolation, and Service Entrance enhance flexibility for diverse applications. Designed for resilience, it empowers critical systems to remain operational even amidst power disruptions.
TS 870 Automatic Transfer Switches employ two mechanically interlocked power switching units with an Advanced ATS Controller to automatically start a generator and transfer system load to a generator supply in the event of a utility supply failure. System load is then automatically re-transferred back to the utility supply following restoration of the utility power. Typical load transfer sequences are “Open Transition” (i.e., break-before-make) with adjustable neutral position delay to ensure adequate voltage delay for preventing out of phase transfers.
Browse TS 870 Products
Discover the exceptional quality and performance of our TS870 products today!
View the TS 870 Brochure
Download our TS870 product brochure today to explore all the features and benefits!
TS870 Bypass Automatic Transfer Switches Offer:
Enclosed Contact Power Switching Units
- Fully enclosed silver alloy contacts provide high withstand rating & 100% continuous current rating
- 3 cycle short circuit current withstand
- 10 cycle 6X overload current rating
- Completely isolated utility and generator side power switching units
- Power switching units can incorporate overcurrent protection, allowing cost savings in upstream devices
- Switching manually will prevent damage while in service
Reliable Motor-Operated Transfer Mechanism
- Heavy duty brushless gearmotor and operating mechanism provide mechanical interlocking (for open transition ATS) and longer product life
- Stored Energy: Motor Operators for fast CTTS
- Safe manual operation permits operation under adverse conditions
Superior Serviceability
- All mechanical and control devices are visible and front accessible
- All control wires and power busses are front-accessible
- Plug-in TSC 7320 Transfer Switch Controller
Control Features
- TSC 7320 Advanced ATS Controller with 2.3” back-lit LCD display and programmable inputs/output
- Isolation plug permits disconnecting control circuits from all power sources
Product Data
- Models from 100 - 1200A continuous current
- Available 2, 3 or 4 pole
- All models 50/60Hz rated
- Voltage range 120 - 600VAC
- 3 phase, 3 or 4 wire systems
- Open Transition or Closed Transition ATS
- 1000 - 1200A offer fast Open Transition transfer, with phase monitoring
Seismic Certification
TS 870 ATS is certified for installation and operation per the following requirements:
- IBC 2012 – Section 13, Occupancy Category IV
- ASCE7 - 05 Region 3 (minimum SS=200%)
Safety Standards
- UL™* 1008 Automatic Transfer Switches for use in Emergency Systems
- CSA™* C22.2 No. 178 Automatic Transfer Switches
- NFPA™* 110 Standard for Emergency and Standby Power Systems
Warranty
- 2 year limited warranty included
* Check out our brochure for additional product information, controller features and optional add-ons.
